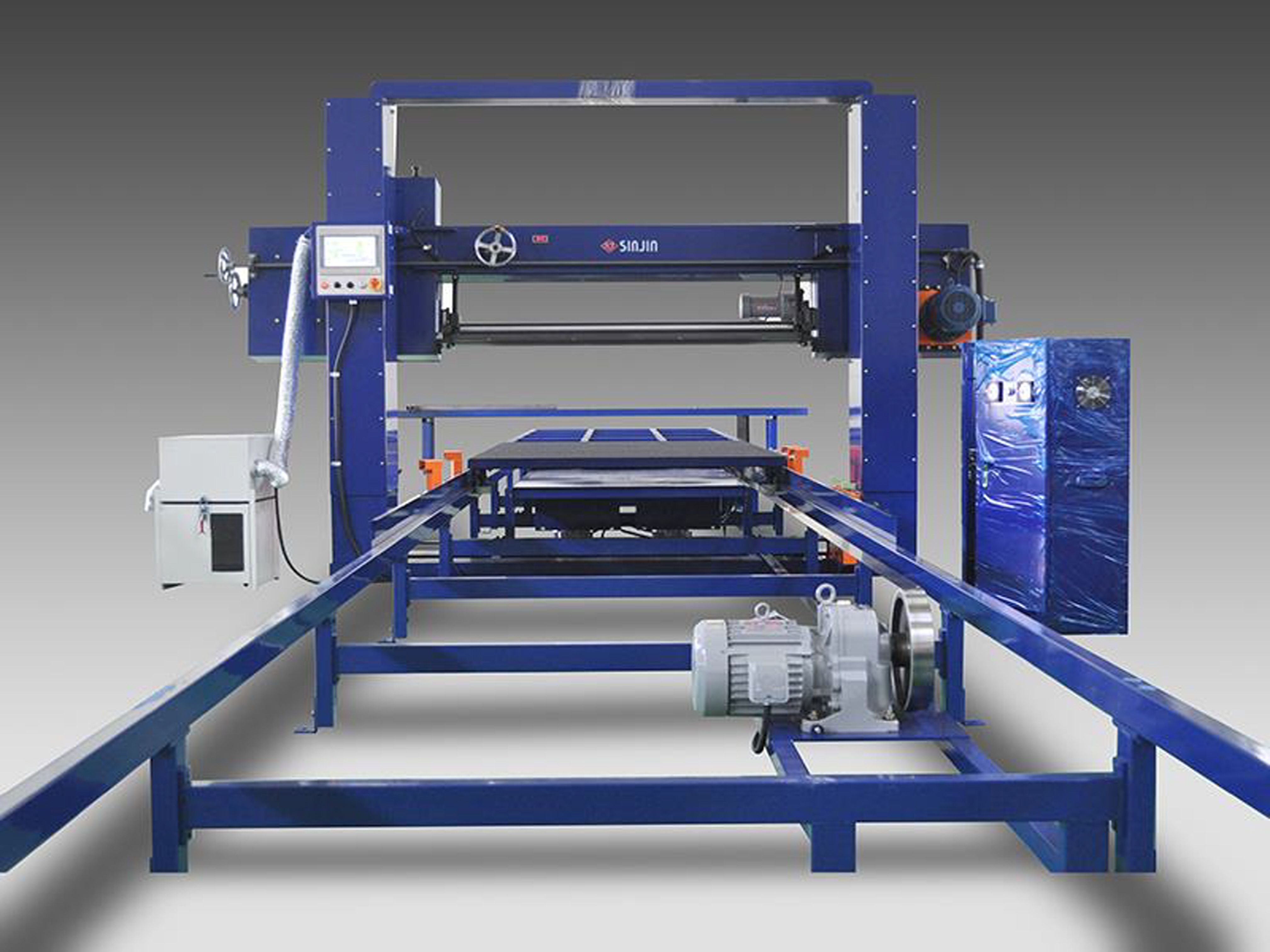

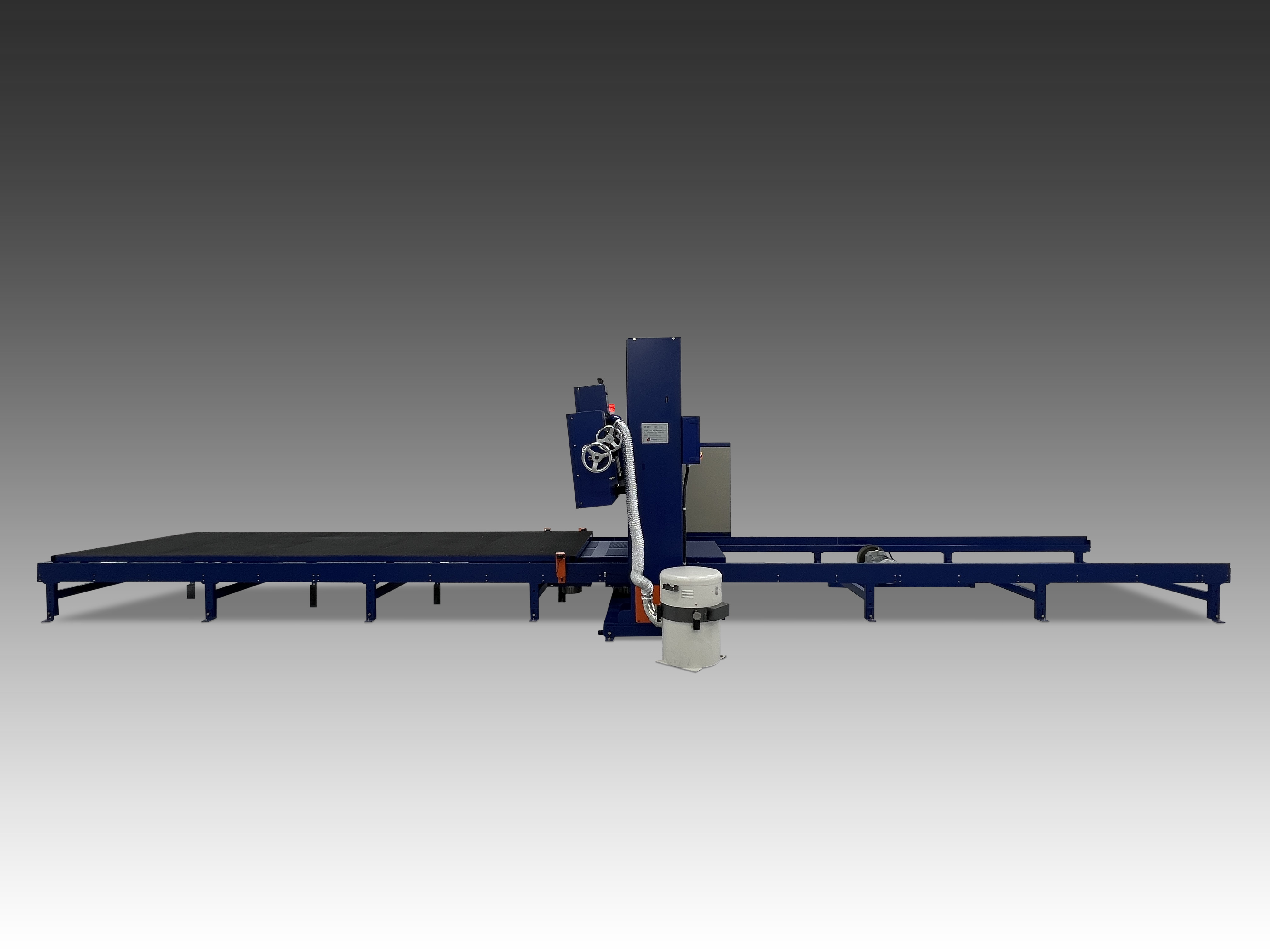

▪Horizontal Cutting Machine-Standard Type-A machine that horizontally cuts the foam to the desired thickness.
-Automatic calculation of working quantity.
-Using a table vacuum suction device.
-Use knife grinding grinder and dust collector.
▪Specifications
-Working speed : Max. 55m/min
-Cutting thickness : 2–150mm
-Error range : ±0.1mm
-Cutable Height : 1,250mm
-Table size
: 1,630mm(W) X 4,550mm(L)
: 1,630mm(W) X 6,370mm(L)
-Operation panel : Touch screen
-Total Output : 14.38kW
▪Option
-Table size can be changed.
-Table vacuum suction unit can be changed to high pressure (high hardness, high density foam).
