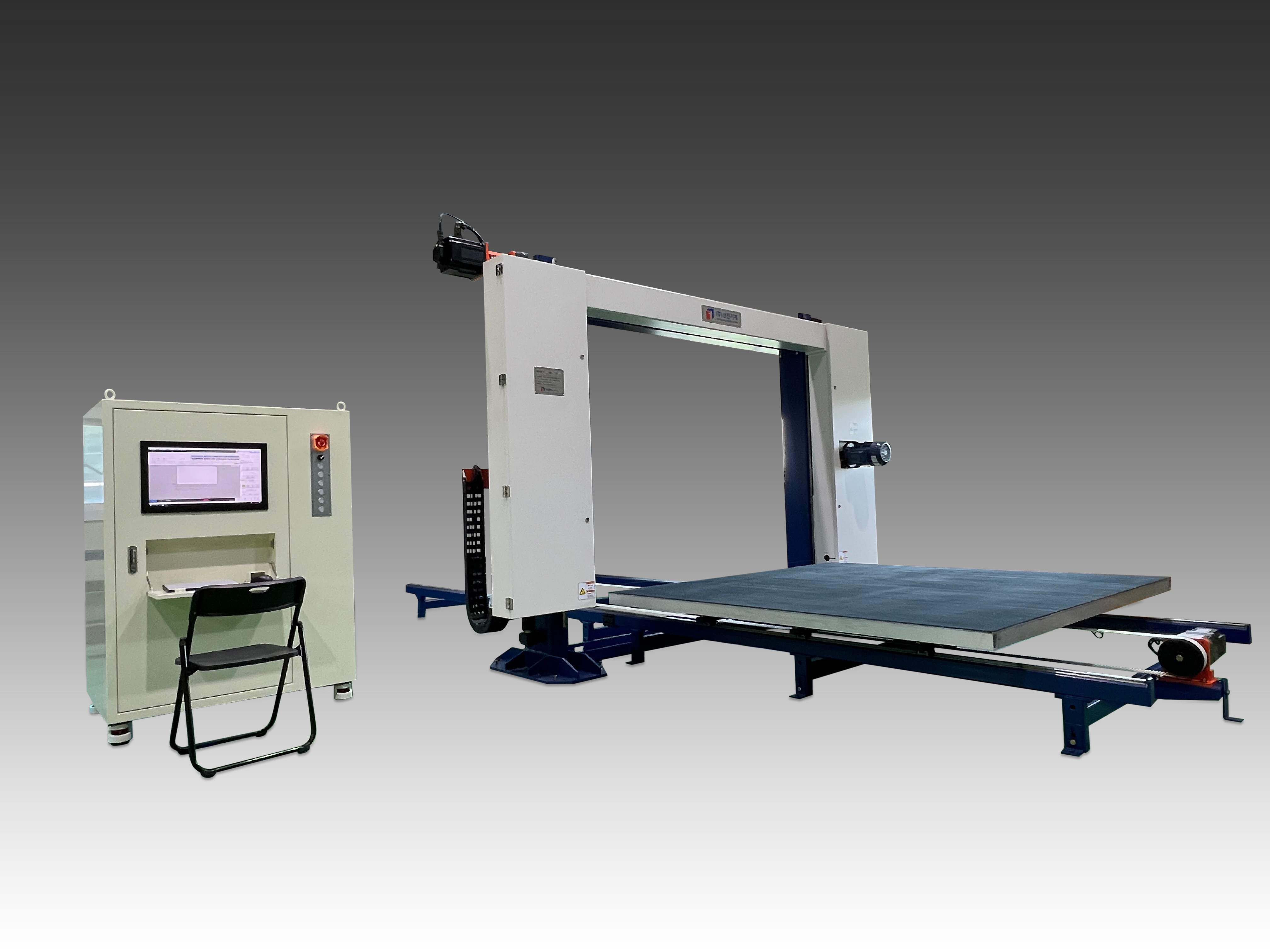

▪Horizontal Contour Cutting Machine-With Oscillating Knife Type

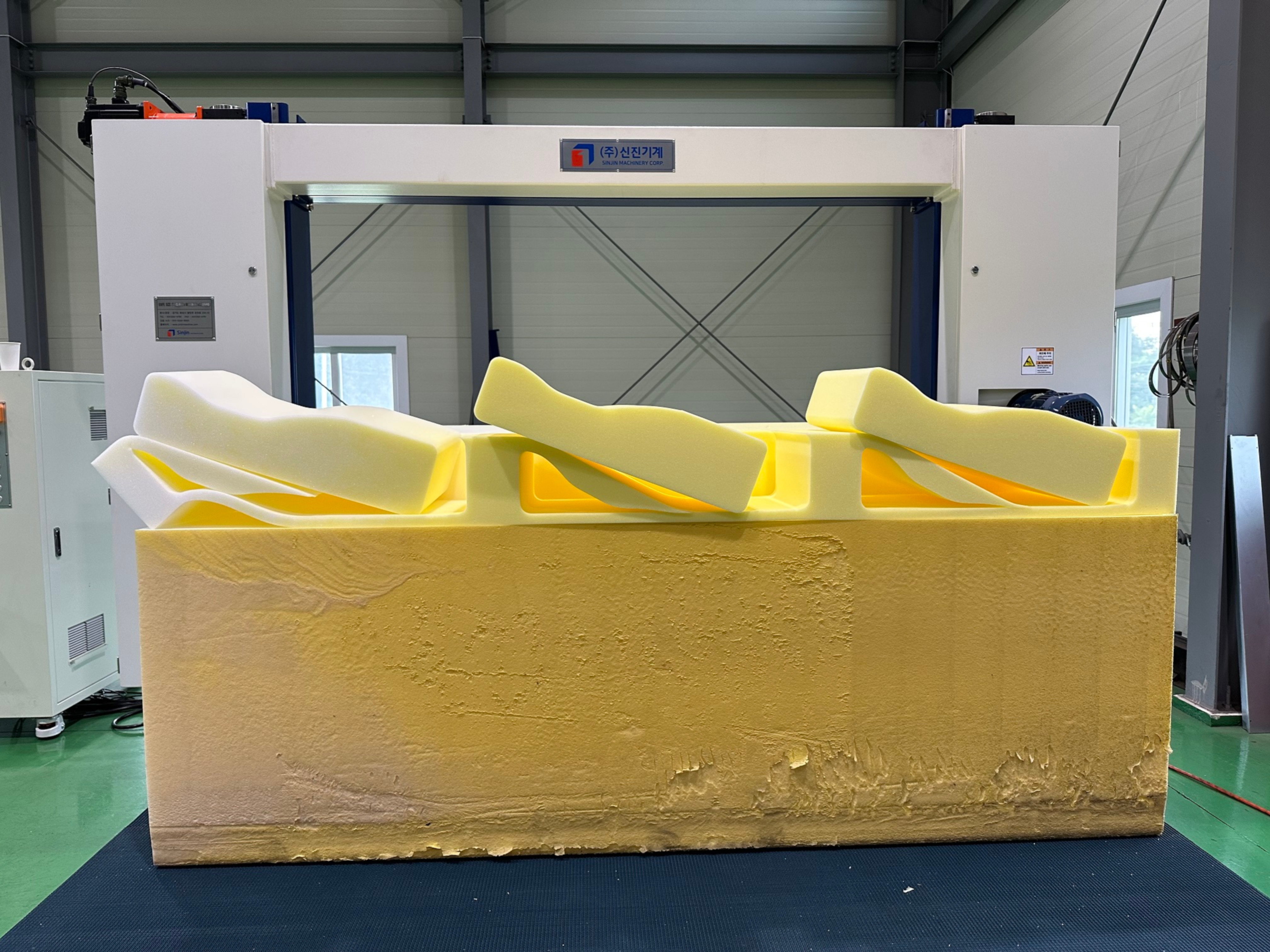

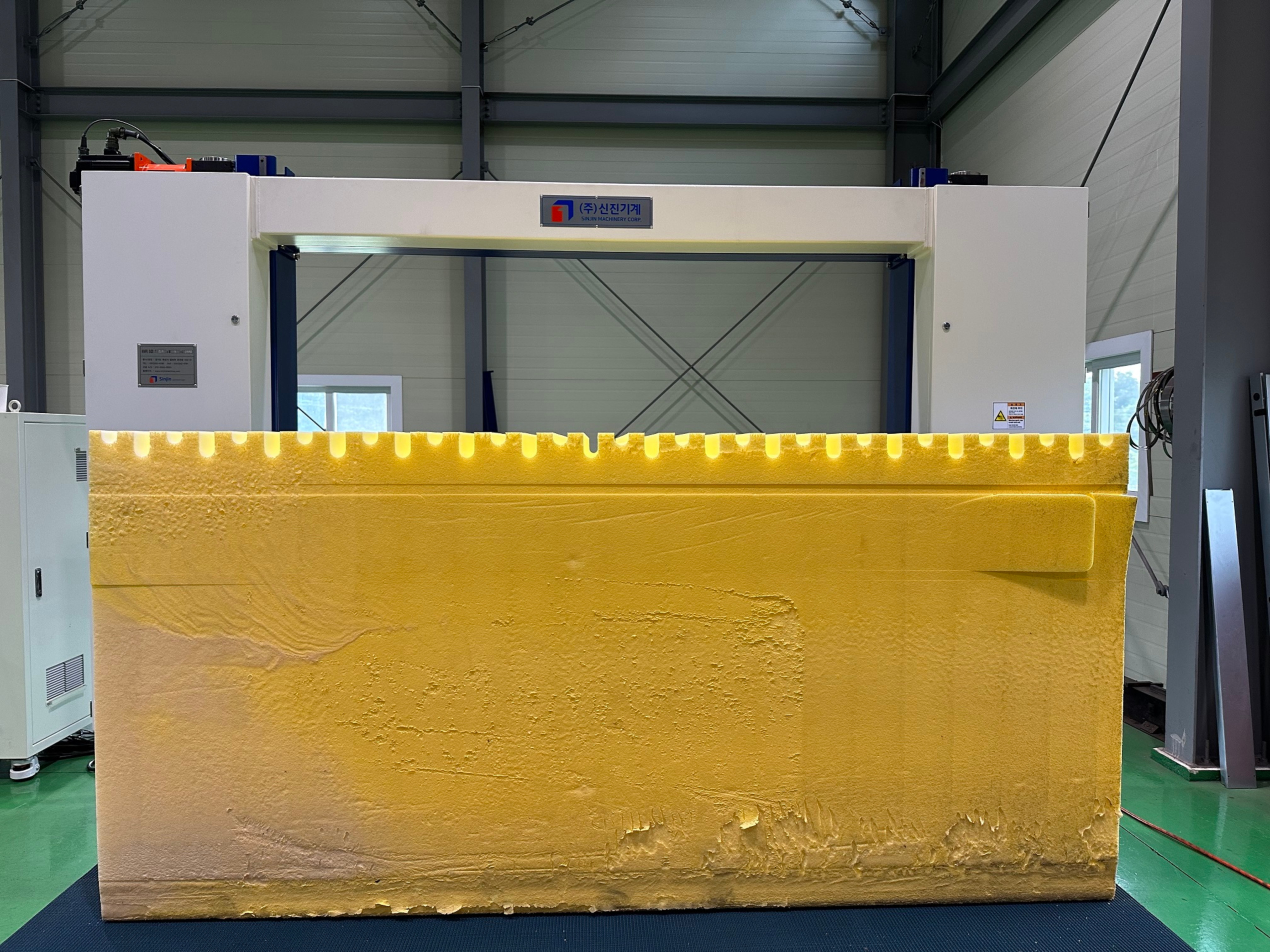

-A machine that cuts the foam into the desired shape through multi-axis control of the servo motor.
-Gstar CAD program allows you to draw the design you want, and then use the A2D_CUT program
to manipulate the machine and cut the foam.
▪Specifications
-Working speed : Max. 50 mm/sec (work speed can be adjusted according to foam characteristics)
-Knife driving method : Oscillating method using wire crank
-Table size : 2,200mm x 2,200mm (manually rotatable by 90°)
-Cutable Height : 1,200 mm
-Error range : ±0.5 mm
-Servo motor control : Table forward and backward, body up and down, knife 360° rotation
-Operating System : Windows
-Used program : Gstar CAD, A2D_CUT
-Total Output : 10.1kW
▪Option
-Table size and height can be changed.
-Addable foam fixture.
